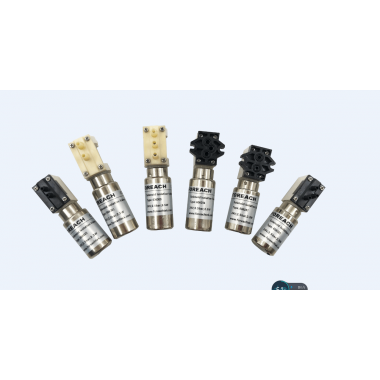

Isolation solenoid valve
-With the unique design of swing rod diaphragm, it will not affect piping system when valve open and close.
-Smooth flow path of the valve, Large flow coefficient, Small external dimension, Light weight.
-Fast reaction (less than 10 milliseconds), high reliability (tens of millions of useful life).
-The electromagnet is completely shielded from the metal shell, and has no magnetic leakage and less sound.
-The components’ material of contact fluid include PPS, EPDM and FKM and etc.
-Small internal dead volume
-Low energy consumption (minimum 1.6 watts) and low working temperature.
-Super strong chemical resistance
-Various types of installation
| part number | Channel | Path(mm) | flow coefficient (Kv) | port type | Voltage | NO/NC | plate material | Diaphragm material |
| 606001 | 2 | 1.6 | 0.05 | O-ring type | 12 | NO | PPS | EPDM |
| 606002 | 2 | 1.6 | 0.05 | O-ring type | 12 | NC | PPS | EPDM |
| 606003 | 2 | 1.6 | 0.05 | O-ring type | 24 | NO | PPS | EPDM |
| 606004 | 2 | 1.6 | 0.05 | O-ring type | 24 | NC | PPS | EPDM |
| 606005 | 2 | 1.5 | 0.04 | Tubing type | 12 | NO | PPS | EPDM |
| 606006 | 2 | 1.5 | 0.04 | Tubing type | 12 | NC | PPS | EPDM |
| 606007 | 2 | 1.5 | 0.04 | Tubing type | 24 | NO | PPS | EPDM |
| 606008 | 2 | 1.5 | 0.04 | Tubing type | 24 | NC | PPS | EPDM |
| 606009 | 2 | 1.6 | 0.05 | 1/4-28UNF thread | 12 | NO | PPS&PTFE | EPDM或 |
| 606010 | 2 | 1.6 | 0.05 | 1/4-28UNF thread | 12 | NC | ||
| 606011 | 2 | 1.6 | 0.05 | 1/4-28UNF thread | 24 | NO | ||
| 606012 | 2 | 1.6 | 0.05 | 1/4-28UNF thread | 24 | NC | ||
| 606013 | 2 | 1.6 | 0.05 | M6 thread | 12 | NO | ||
| 606014 | 2 | 1.6 | 0.05 | M6 thread | 12 | NC | ||
| 606015 | 2 | 1.6 | 0.05 | M6 thread | 24 | NO | ||
| 606016 | 2 | 1.6 | 0.05 | M6 thread | 24 | NC | ||
| 606017 | 2 | 2 | 0.07 | O-ring type | 12 | NO | PPS | EPDM |
| 606018 | 2 | 2 | 0.07 | O-ring type | 12 | NC | PPS | EPDM |
| 606019 | 2 | 2 | 0.07 | O-ring type | 24 | NO | PPS | EPDM |
| 606020 | 2 | 2 | 0.07 | O-ring type | 24 | NC | PPS | EPDM |
| 606021 | 2 | 2 | 0.07 | Tubing type | 12 | NO | PPS | EPDM |
| 606022 | 2 | 2 | 0.07 | Tubing type | 12 | NC | PPS | EPDM |
| 606023 | 2 | 2 | 0.07 | Tubing type | 24 | NO | PPS | EPDM |
| 606024 | 2 | 2 | 0.07 | Tubing tytpe | 24 | NC | PPS | EPDM |
| 606025 | 2 | 2 | 0.07 | 1/4-28UNF thread | 12 | NO | PPS&PTFE | EPDM |
| 606026 | 2 | 2 | 0.07 | 1/4-28UNF thread | 12 | NC | ||
| 606027 | 2 | 2 | 0.07 | 1/4-28UNF thread | 24 | NO | ||
| 606028 | 2 | 2 | 0.07 | 1/4-28UNF thread | 24 | NC | ||
| 606029 | 2 | 2 | 0.07 | M6 thread | 12 | NO | ||
| 606030 | 2 | 2 | 0.07 | M6 thread | 12 | NC | ||
| 606031 | 2 | 2 | 0.07 | M6 thread | 24 | NO | ||
| 606032 | 2 | 2 | 0.07 | M6 thread | 24 | NC |
