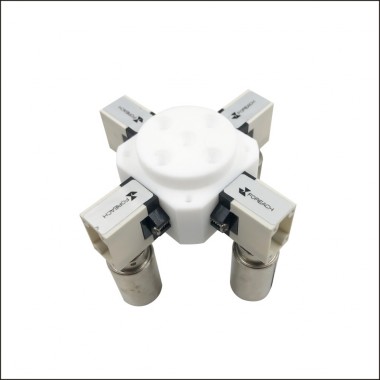

Four-valves
Radial distribution, lower internal volume
Equal resistance for each valve
Thread option: 1/4-28UNF, M6
Feature
● The valve distributes along the circumference of the module
● path of each valve is radial or one line distribution.
● When radial distribution, each valve has equal geometry and equal resistance.
● A flow gradient valve can be composed of valves with different flow rates.
● threaded interfaces have 1/4- 28UNF and M6 options
● Small size, easy to install. Round appearance
● Materials have PTFE, POM, PMMA optional
● Multiple valves are integrated on a module and can be customized according to customer's plan
| part number | Valve Q’ty | way of single valve | Interface(mm) | flow coefficient (Kv) | Port type | Voltage | workig pressure | Medium | Modular Mat’l | Weight(g) | Sizeafter integration(mm) |
| 606049 | 4 | 2 | 1.6 | 0.05 | M6 | 12 | 0~0.25 | Water,air | POM | 250 | φ81*70 |
| 606050 | 4 | 2 | 1.6 | 0.05 | M6 | 24 | 0~0.25 | Water,air | POM | 250 | φ81*70 |
| 606051 | 4 | 2 | 1.6 | 0.05 | 1/4-28UNF | 12 | 0~0.25 | Water,air | PTFE | 250 | φ81*70 |
| 606052 | 4 | 2 | 1.6 | 0.05 | 1/4-28UNF | 24 | 0~0.25 | Water,air | PTFE | 250 | φ81*70 |
| 606053 | 4 | 2 | 2.0 | 0.07 | M6 | 12 | 0~0.25 | Water,air | POM | 250 | φ81*75 |
| 606054 | 4 | 2 | 2.0 | 0.07 | M6 | 24 | 0~0.25 | Water,air | POM | 250 | φ81*75 |
| 606055 | 4 | 2 | 2.0 | 0.07 | 1/4-28UNF | 12 | 0~0.25 | Water,air | PTFE | 250 | φ81*75 |
| 606056 | 4 | 2 | 2.0 | 0.07 | 1/4-28UNF | 24 | 0~0.25 | Water,air | PTFE | 250 | φ81*75 |
